IP Speaker Setup

Description

This article will cover how to setup a S-1515A IP Speaker with a Luminys NVR

Prerequisites

• S-1515A IP Speaker on the same network as a PC
• Luminys NVR

Step by Step Instructions

Initial IP Speaker Setup

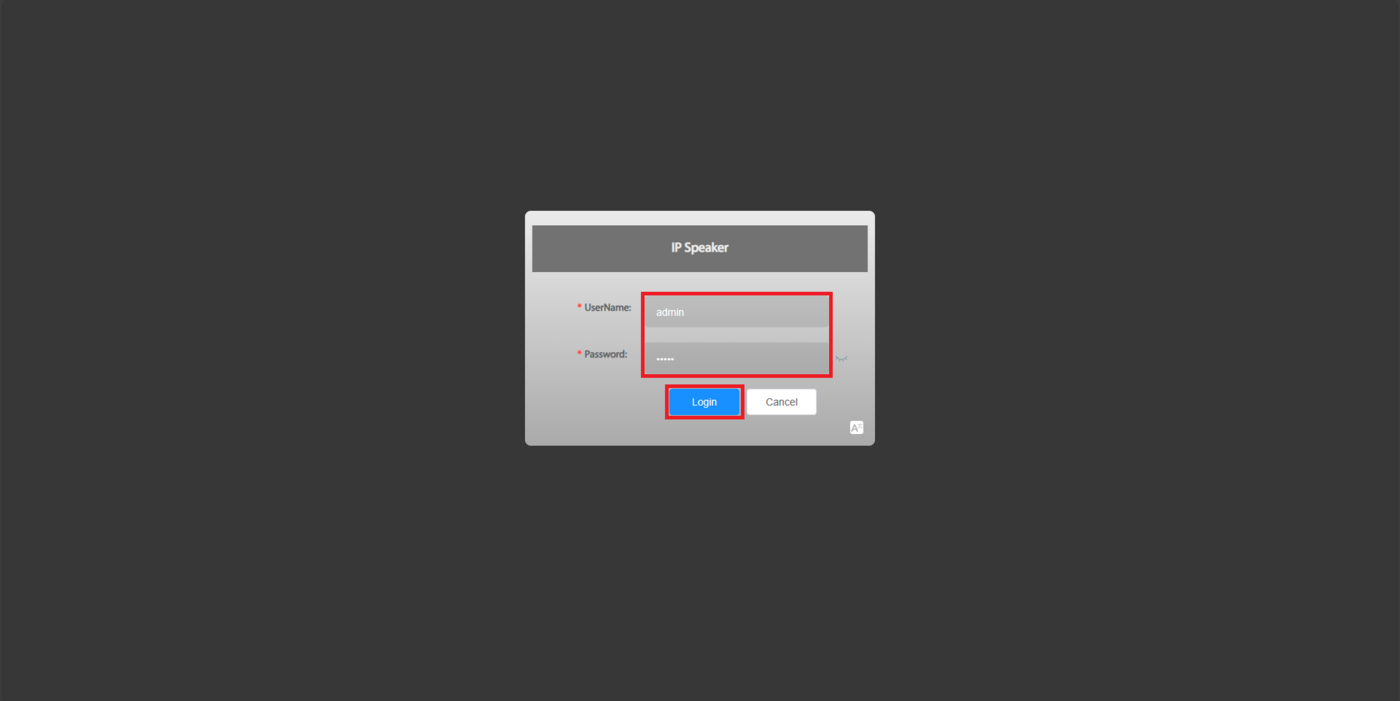

1. Open the web interface of the IP Speaker on a PC on the same network.
The defualt IP Address is 192.168.1.101.
Enter the defualt username of "admin" in the UserName field.
Enter the defualt password of "admin" in the Password field.
Click on Login

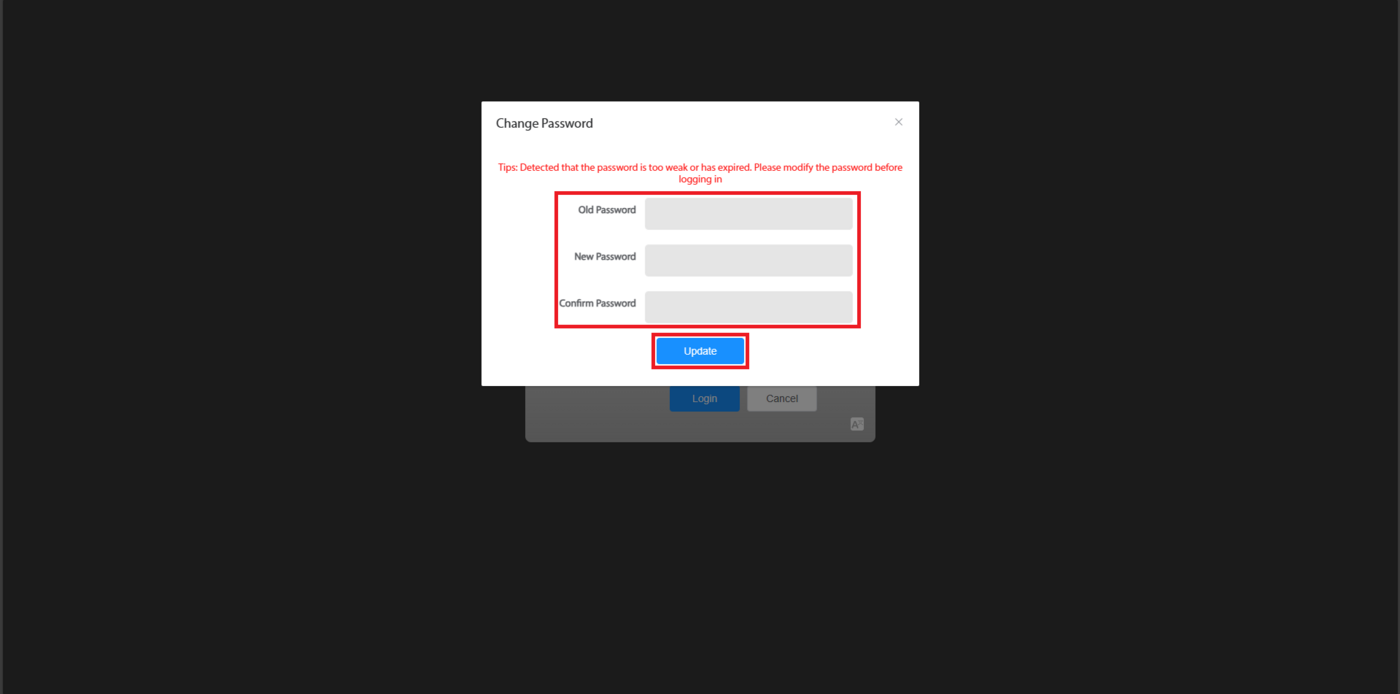

2. Enter the default password of "admin" in the Old Password field.
Enter a new password in the New Password field.
Enter the same new password in the Confirm Password field.
Click on Update

3. Enter "admin" in the UserName field.
Enter the IP Speaker's new password in the Password field.
Click on Login

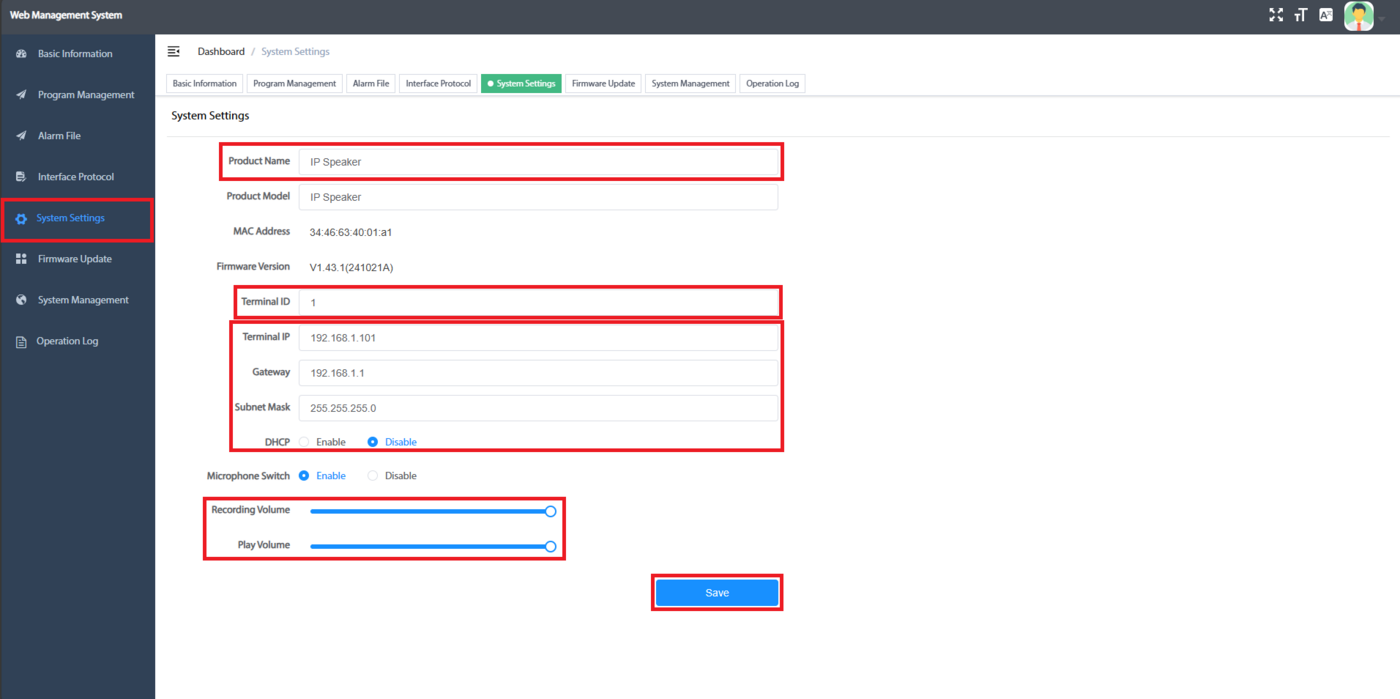

4. Select System Settings on the left.
Change the name of the IP Speaker in the Product Name field.
Enter a unique number in the Terminal ID field. NOTE: Each IP Speaker used on the same NVR needs a unique Terminal ID Number.
Enter an IP address in the Terminal IP field, if you want to change the IP address of the IP Speaker.
If you changed the IP address, update the information to match in the Gateway and Subnet Mask fields.
Alternatively, you can select the Enable option next to DHCP to have the network's DHCP server automatically assign the IP Speaker an IP Address, Gateway, and Subnet Mask.
Adjust the sliders next to Recording Volume and Play Volume for the build in microphone and speaker.
Click on Save

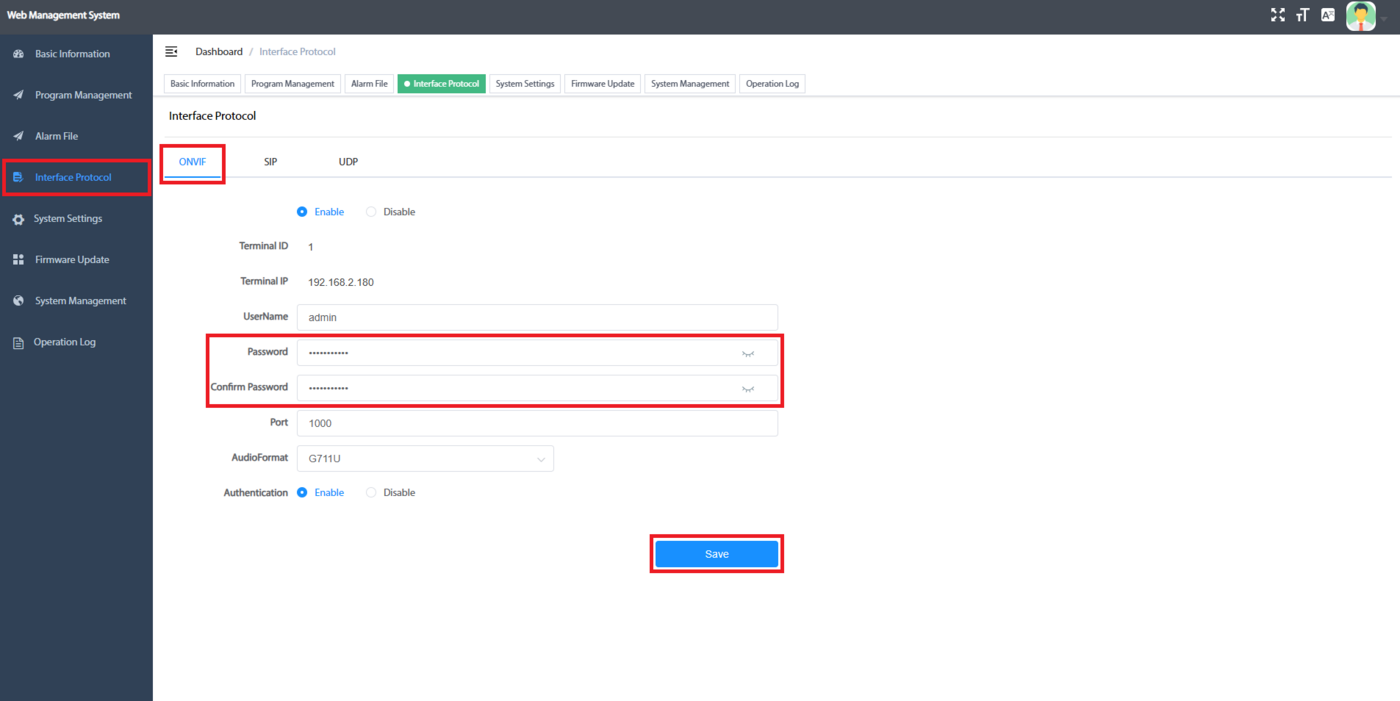

5. Select Interface Protocol on the left.
Select the ONVIF tab.
Enter the IP Speaker's admin account password in the Password field.
Enter that same password in the Confirm Password field.
Click on Save

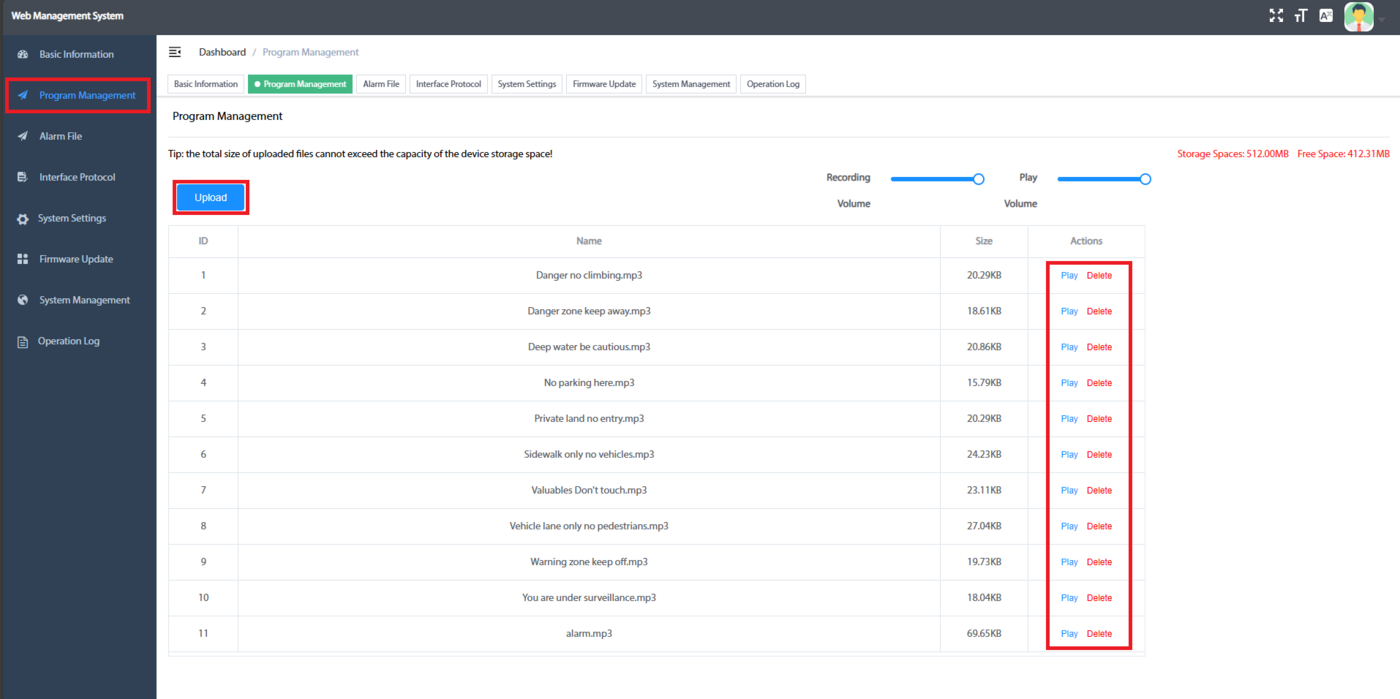

6. Select Program Management on the left.
You can test play any of the existing audio files through the speaker by pressing the Play button next to any of them.
If you want to delete any of the existing audio files, press Delete next to it.
To add more audio files, select the Upload button and select an audio file from your PC's file system.
NOTE: The speaker can only handle up to 16 audio files

IP Speaker Configuration on Luminys NVR

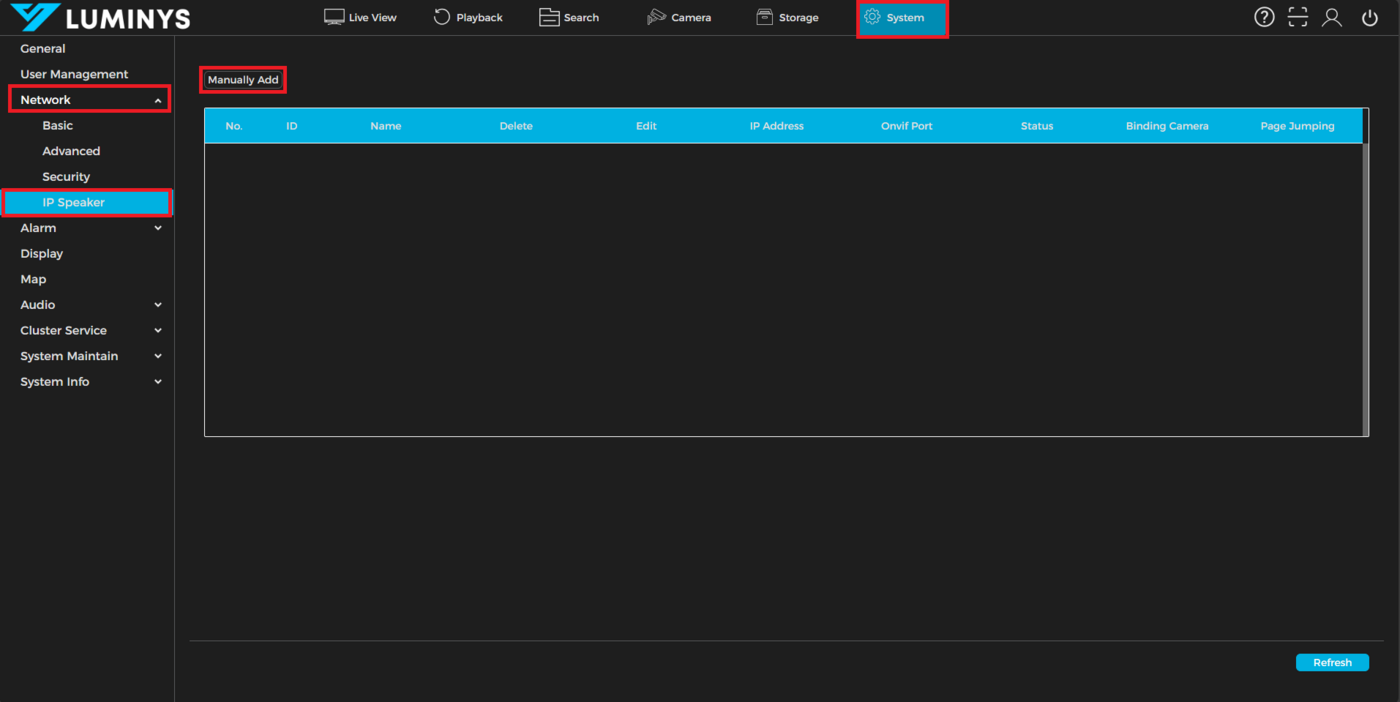

1. Open the web interface of a Luminys NVR.
Select System at the top.
Expand Network on the left and click on IP Speaker under that.
Click on Manually Add near the top

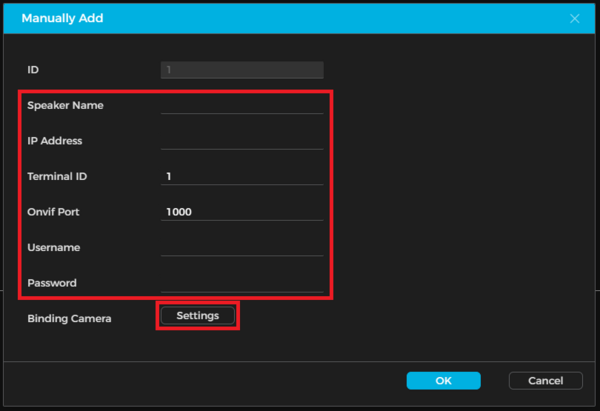

2. Enter a name for the IP Speaker in the Speaker Name field.
Enter the local IP address of the IP Speaker in the IP Address field.
Enter the unique terminal ID number for the IP Speaker in the Terminal ID field.
Enter "1000" in the Onvif Port field.
Enter "admin" in the Username field.
Enter the IP Speaker's admin account password in the Password field.
Click on the Settings button

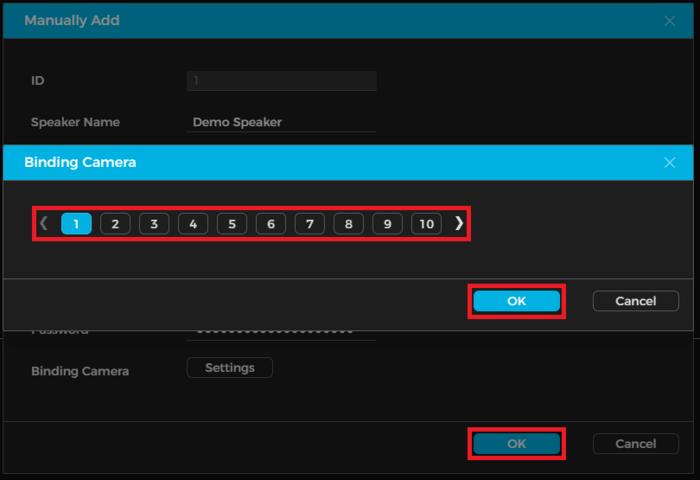

3. Click on a camera channel to highlight it and bind the IP Speaker to 2 Way Talk for that channel.
Click on OK.
Then click on OK on the previous window

4. Click on the Refresh button at the bottom until the indicator under Status changes to a Green color.
If it does not change after 30 seconds to 1 minute, click on the Pencil icon under Edit and verify the settings you entered are correct

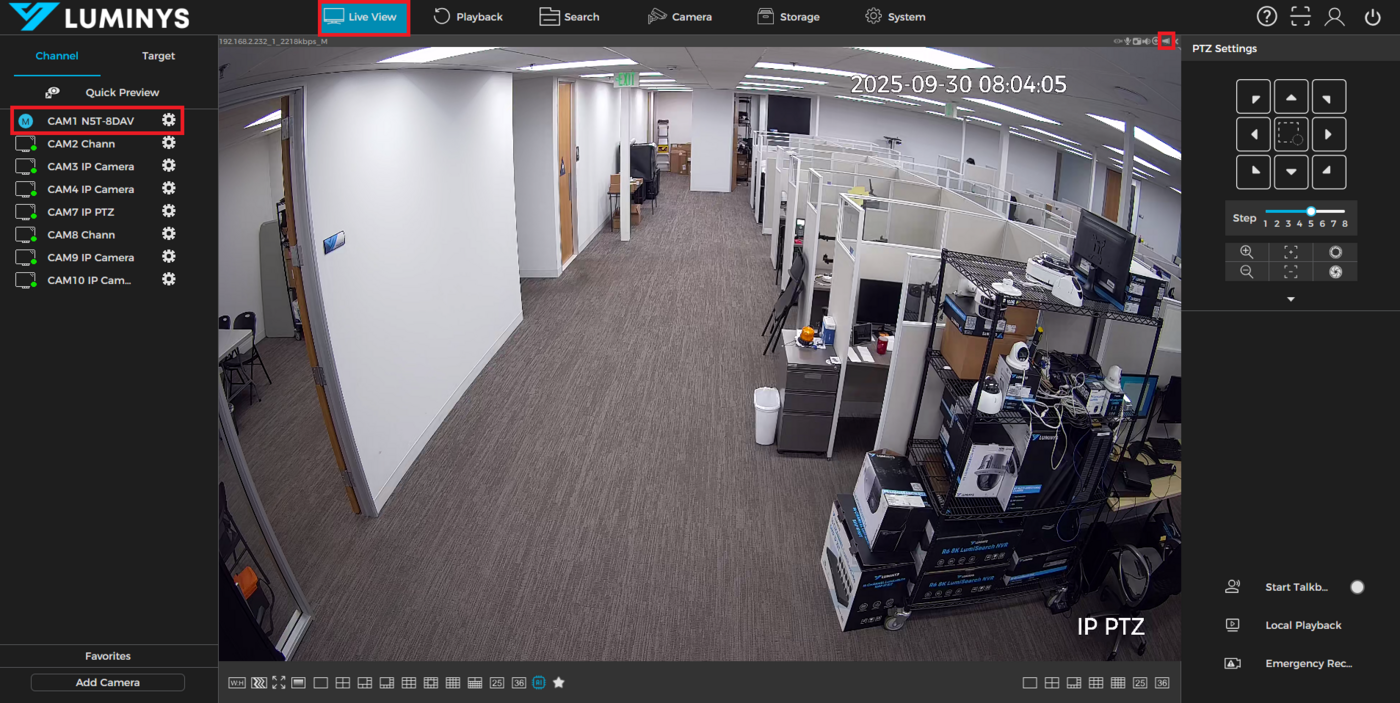

5. Click on Live View at the top.
Select the camera on the list, that matches the channel you selected in Step 5 above, to view its live view.
Click on the IP Speaker icon at the top right of the live view of that camera to enable 2 Way Talk through the IP Speaker.
Click it again to disable it when you are done with 2 Way Talk

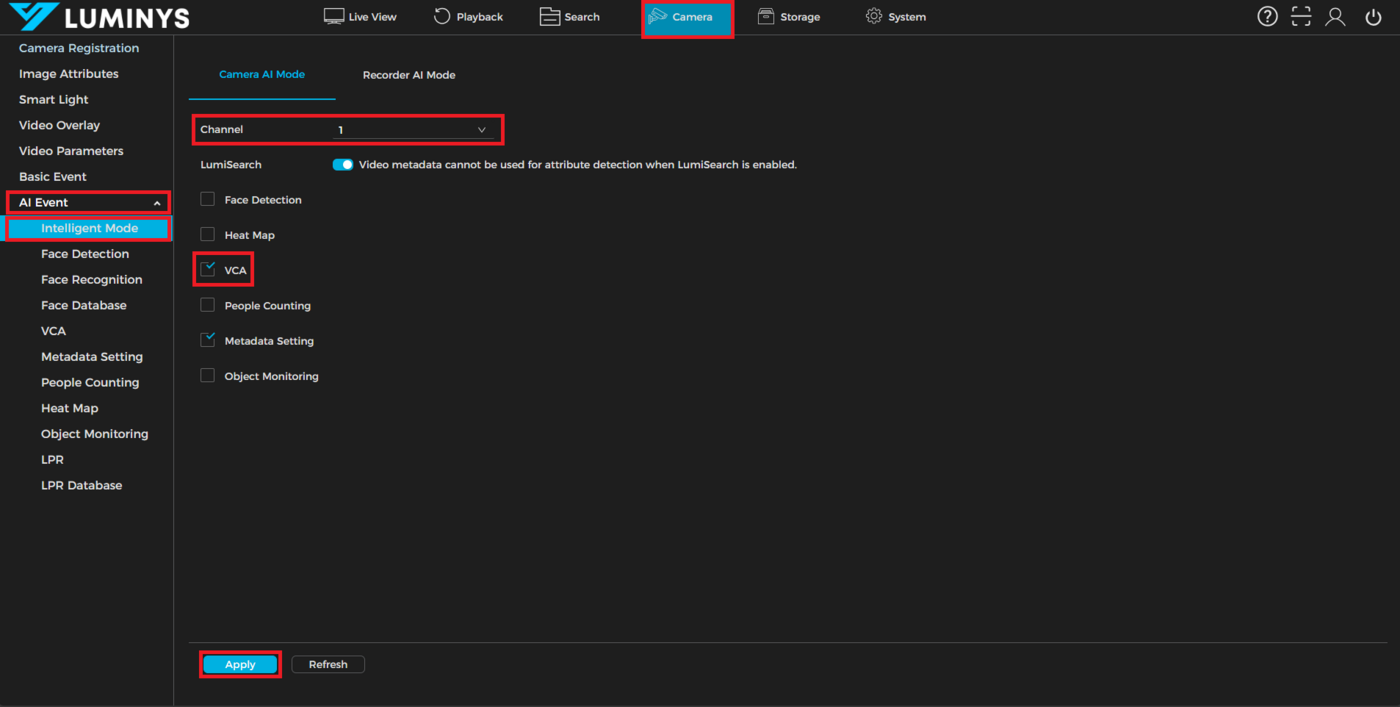

6. Click on the Camera at the top.
Then expand AI Event on the left.
Then select Intelligent Mode under that.
Choose a channel that has VCA from the drop-down next to Channel.
Check the box next to VCA.
Click on Apply at the bottom

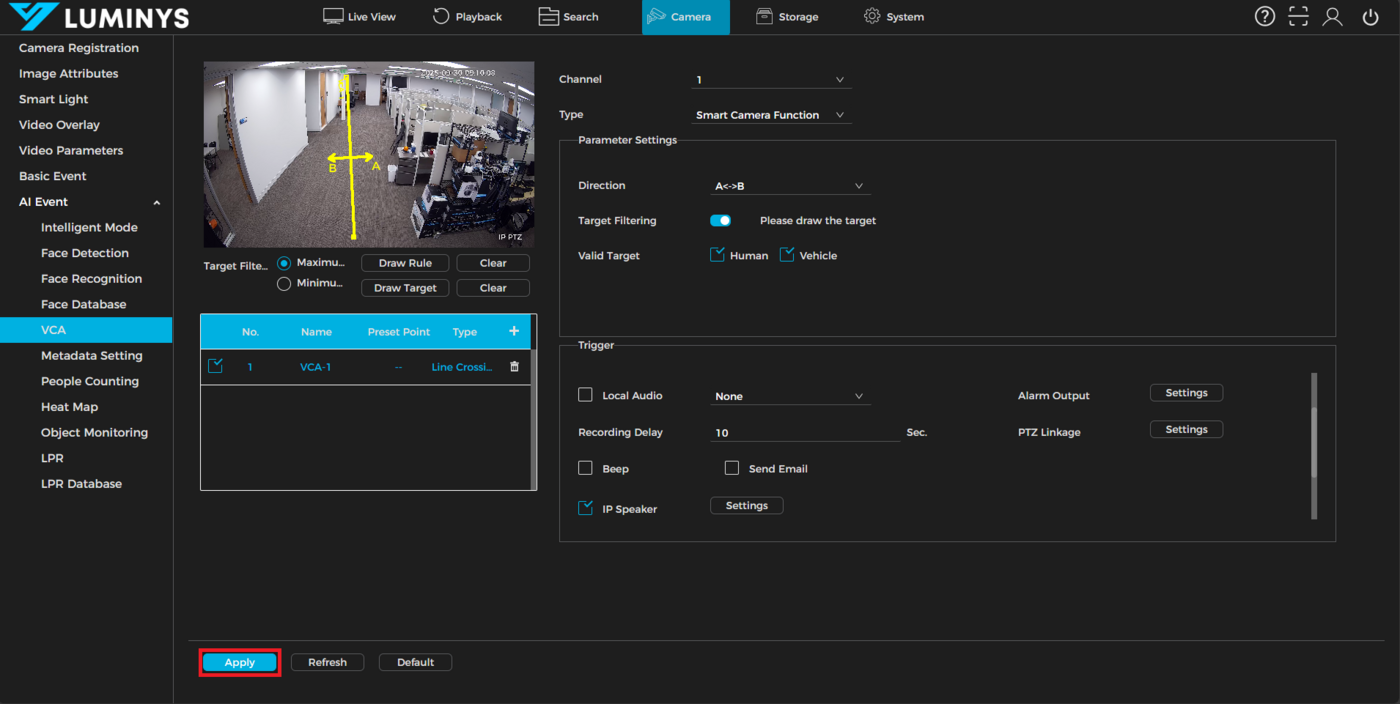

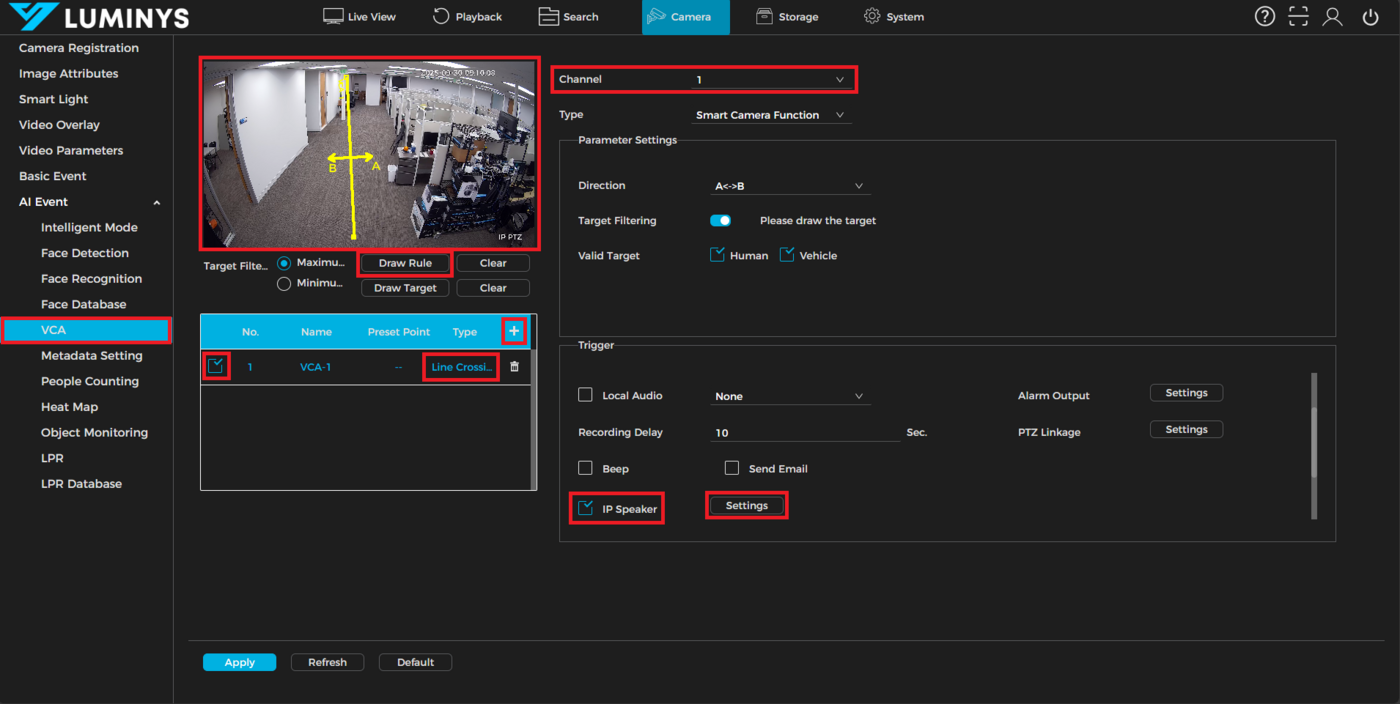

7. Select VCA on the left.
Choose the same channel from the previous step from the drop-down next to Channel.
Press the + plus button to create a new VCA rule.
Make sure the box is checked next to that new rule.
Double-click on the part of that new rule under Type and choose what type of VCA rule this will be.
Click on Draw Rule under the live view on the left.
Left click on the live view to start drawing the rule. Keep left clicking to add more segments. Right click to complete drawing the rule.
Check the box next to IP Speaker in the Trigger section.
Click on the Settings button

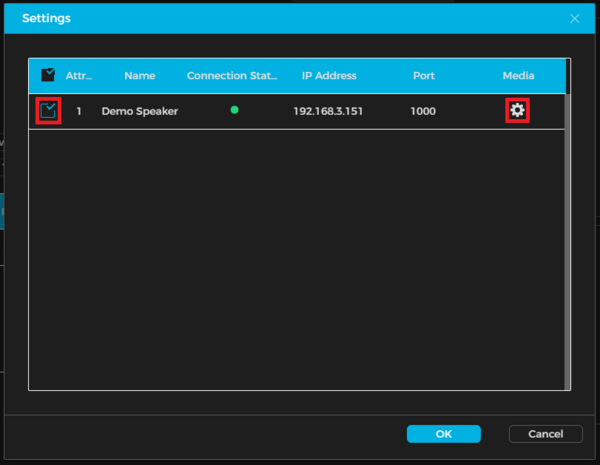

8. Check the box next to the IP Speaker.
Click on the Gear icon under Media

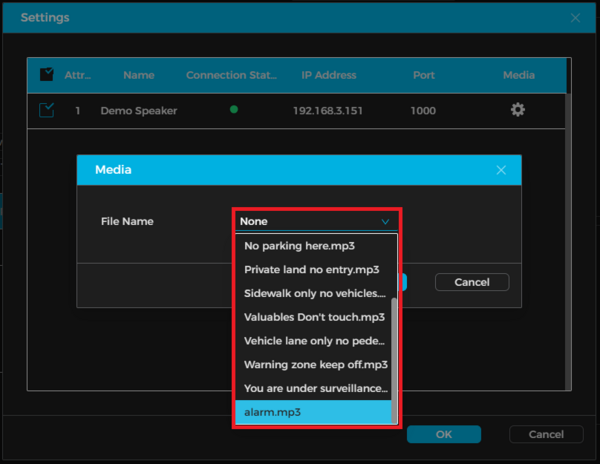

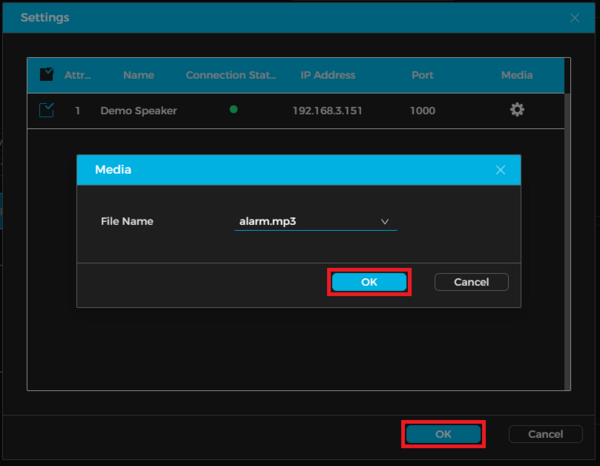

9. Select which audio file, you want to play out of the IP Speaker when the VCA rule is triggered, from the drop down list

10. Click on OK.
Then click on OK on the previous window

11. Click on Apply at the bottom
