Connect 4G Modem to Wi-Fi Network

Description

This tutorial will go over how to connect 4G model to wi-fi netowrk.

Prerequisites

  • Computer needs to be connected to either Ethernet ports on the 4G modem.

Video Instructions

Coming Soon

Step by Step Instructions

1. Power on the 4G modem/router and plug an ethernet cable from a PC/Laptop to the ETH0 or ETH1 port.

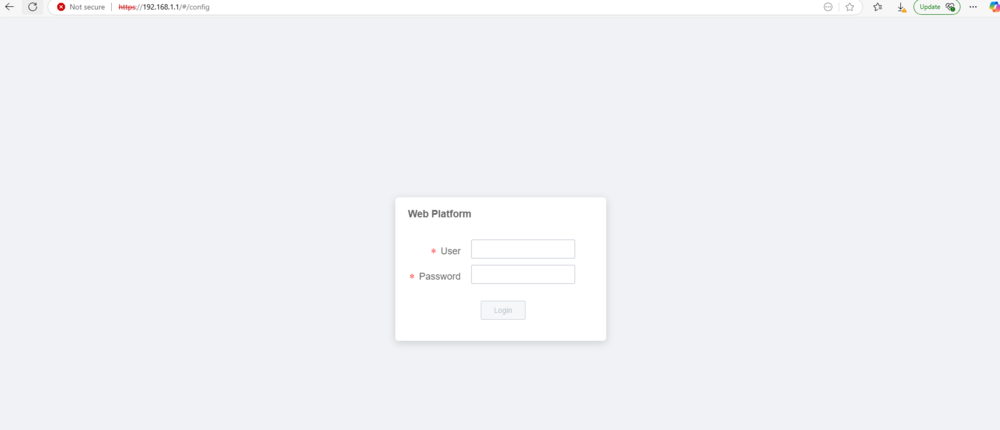

2. Open up a web browser on the PC/Laptop and enter router’s default gateway IP; 192.168.1.1 to access modem login page. Default login credentials are

User: admin
Password: admin

3. At Initial login, the system status menu will indicate Status as Offline.

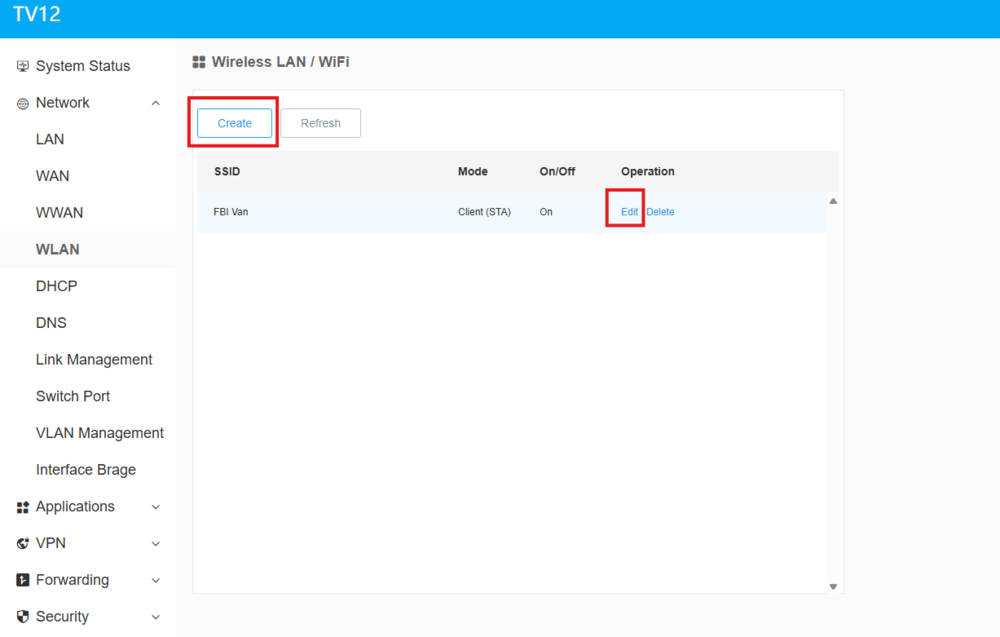

4. From the main menu go to Network > WLAN. Select the Create button to add or select the Edit option of an existing SSID for configuration.

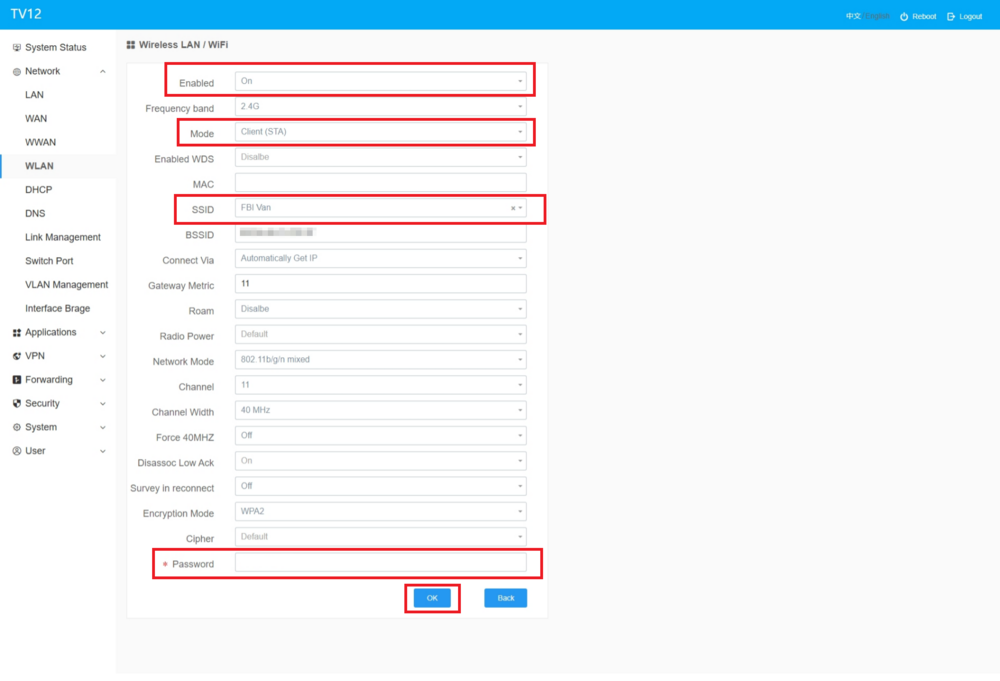

5. In the SSID menu, modify the following options:

  • Enabled > set to On
  • Mode > set to Client (STA)
  • SSID > Select the drop-down menu to choose the desired Wifi SSID to connect with
  • Password > Type in the password of the Wifi SSID
  • Click the OK button on the bottom right corner of the page to confirm the settings

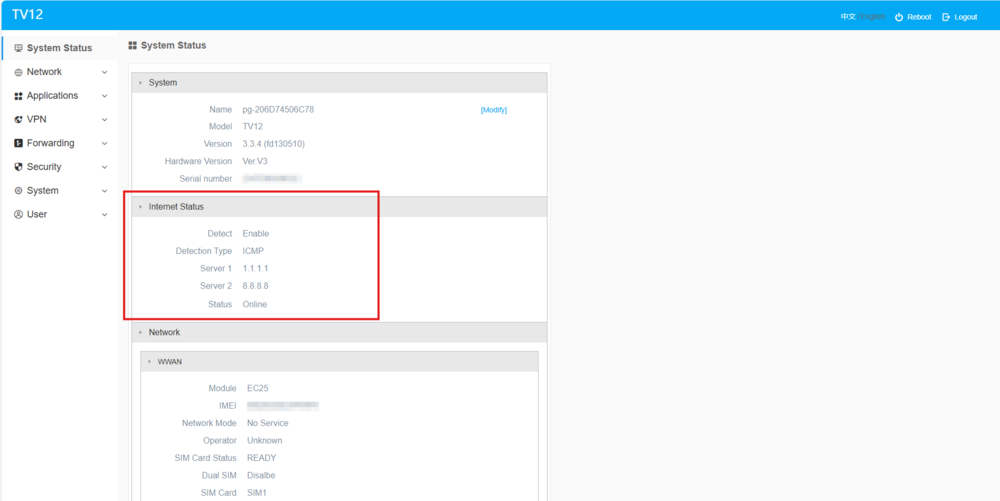

6. After settings change applied, modem/router will reboot. Login again to check System status. Internet Status should now say Online.
